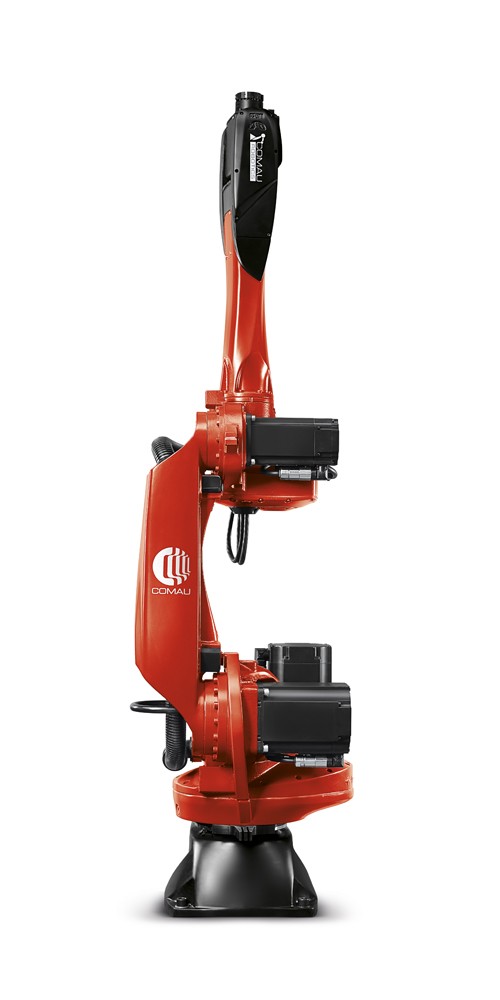

Racer-12 Arc: High-Precision Industrial Robot for Arc Welding
The Comau Racer-12 Arc is a high-speed, 6-axis articulated industrial robot for arc welding applications. Built with a 12 kg payload capacity and an optimized 1,400+ mm reach, it delivers maximum throughput, path accuracy, and weld quality in high-duty cycle metal fabrication environments.
Precision Meets Speed in Automated Arc Welding
The Racer-12 Arc is engineered to address the rigorous demands of automated joinery. By combining best-in-class acceleration profiles with exceptional structural rigidity, this manipulator minimizes cycle times while guaranteeing repeatable, high-precision welds.
Whether integrating into existing production lines or deploying dedicated weld cells, the Racer-12 Arc offers the physical reach, stability, and speed needed to turn welding bottlenecks into high-margin throughput.
Technical specifications Racer-12-1.4 Arc
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 10 |
| Additional load on forearm (Kg) | 10 |
| Maximum horizontal reach (mm) | 1436 |
| Torque on axis 4 (Nm) | 28 |
| Torque on axis 5 (Nm) | 28 |
| Torque on axis 6 (Nm) | 16 |
| Stroke (Speed) on Axis 1 | +/- 165° (220 °/s) |
| Stroke (Speed) on Axis 2 | -85°/ +155° (220 °/s) |
| Stroke (Speed) on Axis 3 | 0°/ -168° (240 °/s) |
| Stroke (Speed) on Axis 4 | +/- 210° (410 °/s) |
| Stroke (Speed) on Axis 5 | +/- 135° (250° /s) |
| Stroke (Speed) on Axis 6 | +/- 2700° (405° /s) |
| Repeatability (mm) | 0.05 |
| Tool coupling flange | ISO 9409 – 1 – A 40 |
| Robot weight (Kg) | 180 |
| Protection class | IP54 |
| Mounting position | Floor |
Key Performance Advantages
Optimized Payload & Reach: Handles heavy-duty torches and seam-tracking sensors effortlessly with its 12 kg payload capacity and extended 1,400+ mm radial reach.
Best-in-Class Dynamics: Advanced trajectory control and fast acceleration profiles reduce point-to-point transit time, maximizing arc-on time across complex geometric paths.
Structural Rigidity: Built to withstand high-duty cycles and suppress mechanical vibrations, ensuring smooth TCP (Tool Center Point) movement and consistent weld bead profiles.
Universal Controller Compatibility: Integrates seamlessly with leading arc welding power supplies, digital communication protocols, and offline programming (OLP) platforms.
Ideal Welding Applications & Industries
The versatility of the Racer-12 Arc makes it an ideal robot for arc welding across demanding manufacturing sectors:
Compatible Welding Processes
- GMAW (MIG/MAG): Gas Metal Arc Welding for structural steel, aluminum, and stainless assemblies.
- GTAW (TIG): Gas Tungsten Arc Welding requiring ultra-smooth, stable TCP trajectory.
- Flux-Cored Arc Welding (FCAW): High-deposition welding for heavy steel plate fabrication.
- Laser-Arc Hybrid: High-speed joining combining deep penetration with gap bridgeability.
Primary Industry Deployments
- Automotive Sub-Assemblies: Exhaust systems, chassis components, cross-car beams.
- Heavy Machinery & Earthmoving Equipment: Structural frames, boom arms, and brackets.
- General Industrial Fabrication: Tanks, pressure vessels, enclosures, and structural tubing.
Arc Welding Ecosystem
Fronius
The TPS/i is one of the most state-of-the-art welding systems and, with its huge power capacity of up to 600 A, it meets the highest demands for steel, stainless steel, and aluminum applications.
Megmeet
Artsen series fit all occasions almost: rail transit, automobile, shipbuilding, steel structure, container, machinery, hardware industry, other harsh environment operations.
Works with
C5G
TP5
