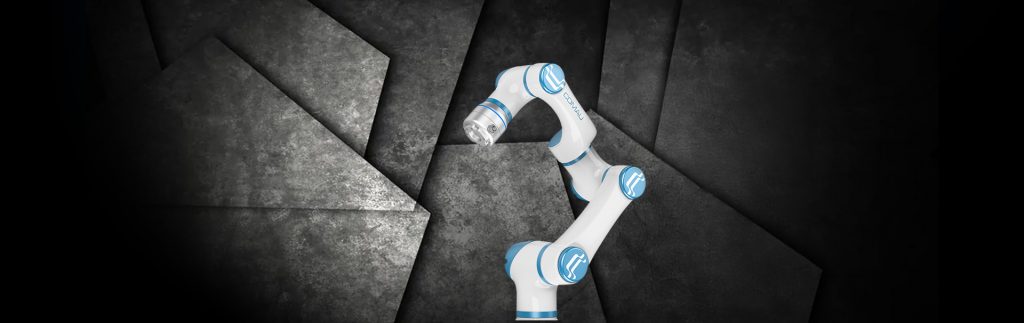

MyCo: Smarter Manufacturing with Comau Collaborative Robots
The MyCo family of cobots is designed for quick installation, easy programming, and rapid redeployment to support faster lead times and reduce integration complexity.
Combining collaborative safety features with ergonomic benefits, MyCo enables humans and robots to work side-by-side, improving employee well-being, optimizing floorspace, and supporting safer, more inclusive operations.
With six lightweight models (3 kg to 15 kg payloads), Comau’s new collaborative robot family delivers a precise, reliable and cost-effective automation solution for companies of all sizes.
Features
- Variety of Models
- High speed in non collaborative mode
- Fully integrated with ROS/ROS2 (for advanced robotics in collaboration mode)
- Low Weight
- UL94-V0
- Internal cabling
- Modular Design
- Compatible with main gripper brands
- Ease of Equipment with external dressings
Benefits
- Easy installation, programming and deployment
- High Precision and Flexibility
- Easy User Interface
- High Protection (against dust and water)
- High repeatability and accuracy
Application Industries
- Automotive
- Healthcare & Pharmaceutical (warehouse or secondary packaging)
- Renewable Energy
- Education
- Metalworking
- Naval
- Railway Industry
- Food & Beverage (warehouse or secondary packaging)
What can do
- Handling
- Assembly
- Machine Tending
- Dispensing
- Arc Welding
- Pallettizing
Technical specifications
| Model | MyCo-3-0.59 |
| Maximum wrist payload | 3 kg |
| Robot weight | 18 kg |
| Maximum horizontal reach | 590 mm |
| Power consumption | 100W “Typical Application” |
| Joint Range | J1, J4, J6 ±360° J2 ±135° J3 ±150° J5 ±147° |
| Joint Speed | “J1–J4 180°/s J5–J6 200°/s” |
| Tool Speed | 2m/s |
| Repeatability | ±0.02mm |
| Degree of Freedom | 6 |
| Dust and Water Protection Class | IP54 (IP66 optional) |
| UL94 Classification | V0 |
| Mounting Position | Floor / Ceiling / Inclined Plane / Wall |
| End I/O Port | Digital input: 3, Digital output: 3, Analog input: 2 |
| Control box I/O port | Digital input: 16, Digital output: 16, Analog input: 2, Analog output: 2 |
| I/O Source | 24V 2A |
| Communication | TCP/IP, ModbusTCP, Profinet (Optional), Ethernet/IP (Optional) |
| Programming | Graphical Programming, Remote calling interface |
| Collaborative Operation | 10 advanced security configuration functions |
| Main Material | Aluminium Alloy |
| Working Temperature | 0-50°C |
| Power Input | 100-240V AC, 50-60Hz |
| Cable | Cable to control box: 5m, Cable to teach pendant: 5m |
