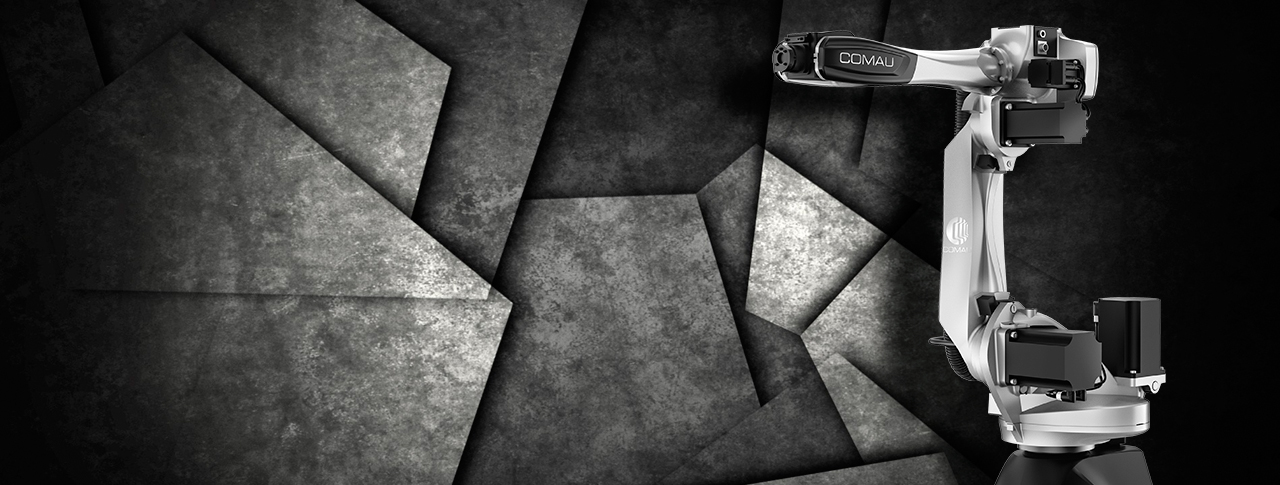

Racer-7-1.4

Precision and Speed Meet Beauty and Passion

Racer-7-1.4

A New Paradigm in General Industry Robotics

A world-class robot that doesn’t skimp on style. With their unmatched pace and movement fluidity, Racer robots deliver optimal efficiency and technological excellence wrapped up in a sharp new design.

Technical specifications Racer-7-1.4

Number of axes6
Maximum wrist payload (Kg)7
Additional load on forearm (Kg)10
Maximum horizontal reach (mm)1436
Torque on axis 4 (Nm)13
Torque on axis 5 (Nm)13
Torque on axis 6 (Nm)7.5
Stroke (Speed) on Axis 1+/- 165° (220 °/s)
Stroke (Speed) on Axis 2-85°/ +155° (250 °/s)
Stroke (Speed) on Axis 30°/ -168° (300 °/s)
Stroke (Speed) on Axis 4+/- 210° (550 °/s)
Stroke (Speed) on Axis 5+/- 135° (550° /s)
Stroke (Speed) on Axis 6+/- 2700° (600° /s)
Repeatability (mm)0.05
Tool coupling flangeISO 9409 – 1 – A 40
Robot weight (Kg)180
Protection classIP65
Mounting positionFloor / Ceiling / Sloping (45° max)
Operating Areas A (mm)1716
Operating Areas B (mm)1436
Operating Areas C (mm)412
Operating Areas D (mm)1130
Operating Areas E (mm)801

What can do

  • Assembly
  • Machine Tending
  • Cosmetic Sealing
  • Handling / Packaging
  • Measuring Testing
  • Polishing Deburring
  • Arc Welding

Works with

C5G

TP5

Auxiliary systems

Positioners

External Axes
